Non Insulated Terminals

Non insulated terminals function as electrical connectors without a protective layer of insulation around the metal component. They are applied to link electrical wires to other elements like studs, screws, or other cables that don’t require insulation. Non insulated terminals have widespread use in applications where the connection is encased in a protected condition (such as a control panel) or where exterior insulation is offered later (like with heat shrink tubing).

In typical cases, these terminals are made from conductive metals, such as copper, brass, or tinned copper where strong electrical conductivity can be ensured. Also, they have universal applications in auto wiring, industrial machinery, and grounding systems.

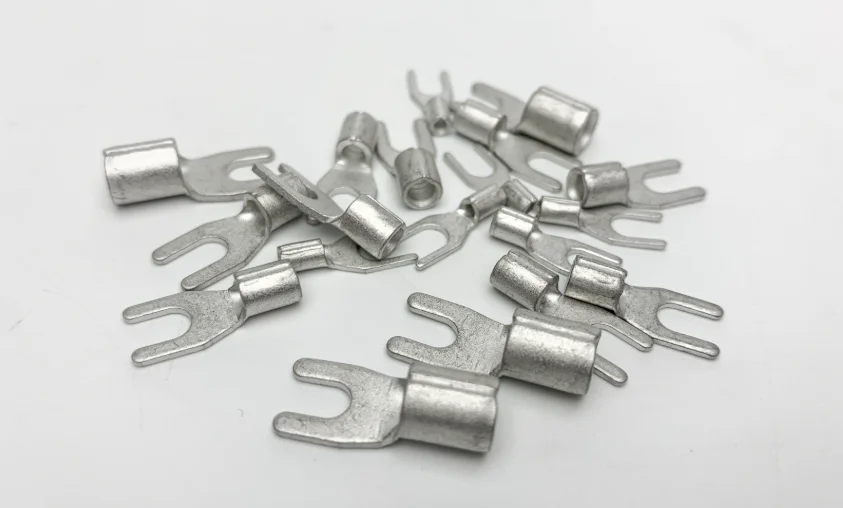

Non-insulated terminals

Non Insulated Terminals Connector Products

Related Terminals

Non Insulated Terminal and Connector FAQS

Some universal applications contain:

  1. Auto Wiring: Non-insulated terminals have extensive applications in auto systems, especially in places where the wiring is sheathed by wire harnesses or covers.
  2. Control Panel: For control panels used in industrial settings where all wiring is enclosed and protected, non insulated terminals provide a more compact solution with no additional insulation.
  3. Grounding System: These terminals usually apply in grounding uses where direct metal contact is required to confirm a solid connection between the terminal and the earth (ground).
  4. Devices & Machinery: Non insulated terminals have extensive uses in home appliances and industrial machinery where components are enclosed. And, few possibilities of accidental contact with conductive surfaces occur.

  1. In some cases, non-insulated terminals provide practical benefits over insulated terminals, which include:

    1. Money Saving: Non insulated terminals are typically less expensive, which enables them to be fit for projects where insulation isn’t needed or is offered externally.
    2. Higher Conductivity: Direct metal-to-metal contact helps enhance the conductivity in some settings because of the metal properties.
    3. Space Saving: Because of the lack of insulation, non insulated terminals become more tightly-packed, which allows it to be used in limited spaces or when several terminals require to be applied.
    4. Customization: Flexibility in how the installation is completed can be given to users in settings where insulation is used later like with heat shrink tubing.

In auto wiring, non insulated connectors are in frequent applications for the following reasons:

  1. Battery Connection: Non insulated terminals like ring and spade terminals are applied in secure as well as high-conductivity connections to auto batteries. The connections are often enclosed in the vehicle, so no additional insulation is needed.
  2. Engine Component: Within the engine bays, non insulated connectors are applied for the connection of sensors, relays, and other components that protect the wire inside the wire loom of the vehicle.
  3. Lighting System: Non insulated connectors have frequent applications in auto lighting since a strong and detachable connections is provided for easy troubleshooting and replacements.
  4. Grounding: Non insulated ring terminals are fit for grounding uses in vehicles, which offers a direct and reliable connection to the chassis of the cars.

Non insulated terminals have extensive uses in grounding applications since they enable direct metal-to-metal contact, which plays a crucial role in the creation of a solid & reliable ground connection. Below are their benefits for grounding systems:

  1. High Conductivity: No barrier between the metal terminal and the ground surface can be achieved by the lack of insulation, which helps improve the effectiveness of the grounding connection.
  2. Secure Fastening: Non insulated ring terminals are widely applied to ground electrical devices to metal surfaces, providing a secure connection, typically for the terminals secured with a screw or bolt, which ensures long-term reliability in auto and industrial uses.
  3. Cost-Effective: Insulation are not often needed for grounding applications, so non insulated terminals offer an less expensive and more efficient solution than other insulated terminals.

Non insulated butt connectors are applied to splice two wires together through the connection of them end-to-end. They have widespread uses in settings where no insulation is needed or is provided exteriorly. Practical uses cover:

  1. Auto Wiring Repair: Non insulated butt connectors have common uses in repairing or extending wires in auto electrical systems. Heat-shrink tubing can be used for insulation after it is crimped.
  2. Household Appliance Repair: Appliance repairs can be achieved by non insulated butt connectors to ensure the secure joint of electrical wires. These connections are usually within the appliance housing, which makes extra insulation unnecessary.
  3. Industrial Machinery: Butt connectors applied in industrial devices achieve the connection of control wires or sensors where the wiring is encased within a protective enclosure.

When non-insulated terminals are applied in industrial control panels, the following factors should be considered:

  1. Enclosure Condition: Non insulated terminals are only be applied within fully enclosed conditions where there is no hazard of accidental contact with other components or surfaces with conductivity because of the lack of built-in protection for non insulated terminals.
  2. Wire Arrangement: Cable ties or wire looms should be used to arrange the wires and protect them against the contact with other exposed terminals, which reduces the risk of short circuits.
  3. External Insulation: A layer of protection can be added by the application of heat-shrink tubing or electrical tapes if the terminals are used in a potentially risky condition.
  4. Periodical Inspection: Regular inspection should be conducted to ensure the secure, corrosion-free and proper connections of the terminals. Non insulated terminals have more susceptibilities to environmental degradation. Therefore, regular inspection is needed.

When non insulated connectors can be applied in marine settings, the following unique actors should be considered:

  1. Resistance to Corrosion: The terminals and connectors should be made from materials that are resistant to corrosion, such as tinned copper or brass, to avoid rust and degradation in wet and salted marine conditions.
  2. Extra Insulation: The application of heat-shrink tubing over the connection is advisable to give protections against moisture and corrosion even if non-insulated connectors can be applied.
  3. Water-Resistant Enclosure: Whenever possible, the connections should be placed in water-resistant enclosures or housings to decrease exposure to water and salt.
  4. Periodical Maintenance: Regular inspection for non insulated terminals should performed for any signs of corrosion or wear due to the harsh marine conditions. Dielectric grease should be applied for further protection against moisture and corrosion.

Non-insulated spade terminals (also defined as fork terminals) have widespread applications in control panel wiring where fast disconnection may be required. In practical uses, these terminals provide the profits below:

  1. Fast Disconnection: fast and easy connection and disconnection can be achieved due to the fork design with no complete removal of the screw terminal, which makes them fit for control systems where periodical adjustments or maintenance is required.
  2. Compact Connection: Non insulated spade terminals are more space-saving with no addition of insulation, which enables them to be fit for control panels where space is tight.
  3. High Conductivity: Efficient electrical conductivity can be ensured by the metal-to-metal connection, which enables non insulated spade terminals to be fit for high-performance control devices.

Some tools are needed for the installation of non insulated terminals. They are:

  1. Wire Stripper: The removal of the insulation from wire can be achieved by a wire stripper before it is inserted into the terminal.
  2. Crimping Tool: The non insulated terminal is compressed onto the wire by a crimping tool, which generates a strong mechanical and electrical connection. it is important that a crimper built for non insulated terminals should be used since the crimping force has differences from that applied for insulated terminals.
  3. Heat Gun (Alternative): A heat gun can be applied to shrink tubing along the connection for extra protection for setups that require additional insulation after the terminal is crimped.

Non-insulated bullet terminals have common uses in auto applications where wires are required to be easily linked and disconnected. Below are the application of the terminal:

  1. Male & Female Connection: A male and female connector constitute bullet terminals. The male bullet is inserted into the female socket, which offers a secure yet easily detachable connection.
  2. Application in Auto Lighting: Non insulated bullet terminals have widespread uses in the connection of lighting systems that include headlights and taillights where fast disconnection is required for repairs or replacement.
  3. Secure Connection: Vibration resistance connection is provided due to the design of bullet terminals, which is crucial for the auto conditions where wires are subjected to continued movement.

Non insulated connectors in high-vibration conditions, such as auto or industrial equipment, need extra protection to ensure long-term reliability.

  1. Double Crimping: Double-crimp terminals that offer two crimps—one for the conductor and another for the insulation— should be applied to avoid wire pullout in high-vibration conditions.
  2. Secure Wires: Cable ties or wire looms should be utilized to fasten the wires and reduce motion, which decreases the change of connector loosening because of vibrations.
  3. Heat Shrink Tubing: Heat-shrink tubing should be applied after extra protection from vibrations can be offered by crimping and secure connection can be maintained, even if the terminal is not insulated.
  4. Regular Check: Periodical inspection should be conducted on non insulated connectors in high-vibration settings to ensure tightly crimping and free from wear or damage.

Yes, non insulated terminals play a crucial role in compact electrical setups where space is tight. Here are the reasons:

  1. Smaller Profile: Non insulated terminals are more space-saving because of the lack of insulation. This makes them fit for tightly-packed control panels or auto wiring harnesses.
  2. Easy Bundling: Non insulated terminals are able to be bundled closely in narrow spaces because of its compactness. This maximizes the application of available space.
  3. Customizable Insulation: The application of customizable insulation (such as heat-shrink tubing) may be easily achieved in narrow spaces after the setup, which allows for a more specialized match than pre-insulated terminals provide.
