Insulated terminals function as electrical connectors built with a layer of insulation. The insulation is generally made from vinyl, nylon, or heat-shrink materials, which encircles the metal conductor. What’s more, it achieves the prevention of unintentional contact with other conductive surfaces, the reduction of the hazards of short circuits or electrical shocks, and the protection of the connection against moisture, chemical substances, and environmental wear. These terminals have widespread uses in automotive, industrial, and home electrical systems where improved safety and durability are keys.

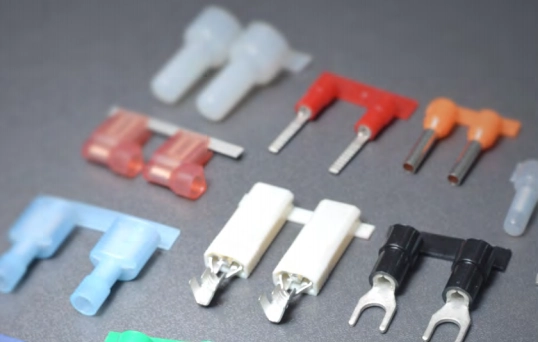

Insulated terminals banner

Insulated Terminal Connector Products

Related Terminals

Insulated Terminal and Connector FAQS

Insulated terminals are applied in a wide range of practical applications where protection against electrical risks and environmental factors is a key:

  1. Auto Electrical System: Insulated ring and spade terminals are applied for the secure connection of wires to the car battery, headlights, and sensors, which protects the connections against vibration, engine heat, and potential short circuits.
  2. HVAC System: Insulated quick disconnect terminals have frequent application in heating, ventilation, and AC units to link thermostats, motors, and fans. The insulation gives protection from moisture and high-heat environments while easy maintenance is ensured.
  3. Industrial Control Panel: Regarding control panel wiring, insulated butt connectors and ring terminals are used to arrange and protect connections against exposure to dust, chemical substances, and mechanical wear, which ensures long-term stability and safety in high-pressure conditions.
  4. Marine Devices: Insulated heat-shrink terminals play a crucial role in wiring in boats, which offers watertight seals that protect corrosion against exposure to saltwater. They have wide applications in navigation systems, bilge pumps, and lighting devices.
  5. Solar Power System: Insulated terminals are employed in solar panel wiring to make sure connections between panels and inverters work in a secure and durable manner. This protects the electrical connections against UV radiation, moisture, and temperature variations in outdoor setups.
  6. Appliance Wiring: Insulated spade and quick disconnect terminals are used in household appliances like washing machines and refrigerators, where motors, compressors, and heating elements are connected to ensure safety from moisture and accidental electrical contact.
  1. Ring Terminal: Insulated ring terminals are applied to link wires to studs or screws. The layer of insulation prevents accidental contact with other conductive components. These are widespread in auto and industrial control systems.
  2. Spade Terminal: Insulated spade terminals (also named fork terminals) enables easy connection to screw terminals with no complete removal of the screw. They are typically applied in auto wiring and control panels where continual disconnection may be required.
  3. Butt Connector: The Butt connector is applied for the end-to-end joint between two wires. Insulated butt connectors have widespread applications in auto repairs, appliance wiring, and marine settings where a secure and insulated connection are ensured.
  4. Quick Disconnect Terminals: Insulated quick disconnect terminals are applied for fast connection and disconnection of wires in auto and appliance settings. Extra protection is offered by the insulation under maintenance or troubleshooting condition.
  5. Bullet Connector: This type of connector offers a secure yet detachable connection. They have common applications in auto and marine wiring, where rapid disconnection is required with no compromise of safety.

Below are the aspects to show how Insulated terminals elevate safety in electrical devices:

  1. Avoid Short Circuits: The exposed metal of the terminal is protected from getting contact with other wires or conductive surfaces, which could lead to issues like short circuits.
  2. Shock Protection: The layer of insulation functions as a barrier to protect users and technicians from electrical shock when installing, particularly in high-voltage or industrial settings.
  3. Environmental Protection: Electrical connections are protected by insulated terminals from moisture, dust, chemical substances, and other environmental conditions that lead to degradation of the connection over time, where durability and safety are ensured.
  4. Heat Resistance: Insulated terminals, those with nylon or heat-shrink insulation in particular, provide protection from high-heat conditions, which makes them fit for application in engines, industrial machinery, or HVAC systems.

In auto settings, insulated connectors are applied to make sure safe and secure wiring connections can be achieved in high-vibration as well as high-temperature conditions. Some practical applications contain:

  1. Battery Connection: Insulated ring terminals enable the connection of the car battery to the car electrical system, which offers both a strong mechanical connection and electrical insulation.
  2. Lighting System: Insulated spade terminals and bullet connectors are applied in headlights, taillights, and indicator lights, which enables safe and insulated connections that are easy to disconnect if necessary.
  3. Sensor Wiring: In modern cars, both insulated quick disconnects and butt connectors are applied to wire different sensors, where the connections are protected against moisture, dirt, and vibration.
  4. Engine Wiring: Insulated terminals play a crucial role in the engine bay, where high heat and the hazard of short circuits are main worries and where heat-resistant insulated connectors are usually applied.

In marine settings where the main issues come from moisture and corrosion, insulated butt connectors play a safe role in joining electrical wires. The insulation on the connectors provides:

  1. Resistance to Moisture: Lots of insulated butt connectors are designed with a heat-shrink insulation that, while heated, generates a watertight seal, which make them fit for wiring boats or other marine devices.
  2. Protection from Corrosion: Saltwater and other corrosive elements are prevented by the insulation from coming into contact the connection, which is helpful for ensuring lifespan in marine settings.
  3. Easy Setup: Butt connectors are crimped onto the ends of the wire, which allows for quick and reliable wire splicing. The insulated design ensures the protection of the connection from short circuits even in narrow and enclosed spaces like boat engine compartments.

In household wiring, insulated connectors are applied to safeguard against electrical failures by the following aspects:

  1. Insulate Exposed Metal: The metal parts of the connector is covered by insulated connectors, which avoids accidental contact with other wires or surfaces. This may result in short circuits.
  2. Offer Strain Relief: Rigidity is added by the insulation on the connectors. Also, the strain on the wire and connection is absorbed by the insulation, which reduces the risk of damage over time, especially in devices, such as washers, dryers, and HVAC systems.
  3. Avoid Corrosion: In wet areas like basements or outdoor wiring, insulated connectors safeguard electrical connections against corrosion that might sacrifice safety or function.

Nylon and vinyl are two types of universally used materials applied for the insulation of electrical terminals. Below are the differences between them:

  1. Nylon Insulation: Greater flexibility and durability are provided by nylon insulation, especially in high-vibration conditions like auto or industrial systems. Nylon has higher resistance to abrasion and can endure higher temperatures.
  2. Vinyl Insulation: It is generally more cost-effective, and commonly applied in household wiring and less demanding settings. Vinyl insulation offers good protection from moisture and corrosion but functions not as durably as nylon in harsh conditions.

In control panels, the purposes of insulated terminals include:

  1. Ensure Arranged Wiring: The organization of control panel wiring can be maintained by insulated terminals, which prevents tangling or contact between various conductors.
  2. Enhance Safety: Through the use of insulated ring or spade terminals, the safety and insulated connections can be maintained by control panels, which reduces the risk of short circuits or electrical hazards when operating.
  3. Facilitate Maintenance: It is easier for technicians to service or replace parts with no need of cutting or rewiring components. this is achieved by insulated quick disconnect terminals.

In extreme conditions, such as industrial machinery, construction sites, or outdoor setups, insulated connectors provide multiple crucial profits:

  1. Dust and Debris Protection: Dust, dirt, and other particles are prevented from entering the connection, which ensures long-term reliability and reduces the hazard of electrical failures.
  2. Resistance to Corrosion: Insulated connectors are perfectly fit for environments that have exposure to moisture or chemical substances since the insulation prevents corrosion of the metal connection.
  3. Shock Protection: Accidental contact with high-voltage wires can be prevented by insulated connectors, which provides safety for workers in risky industrial or outdoor environments.
