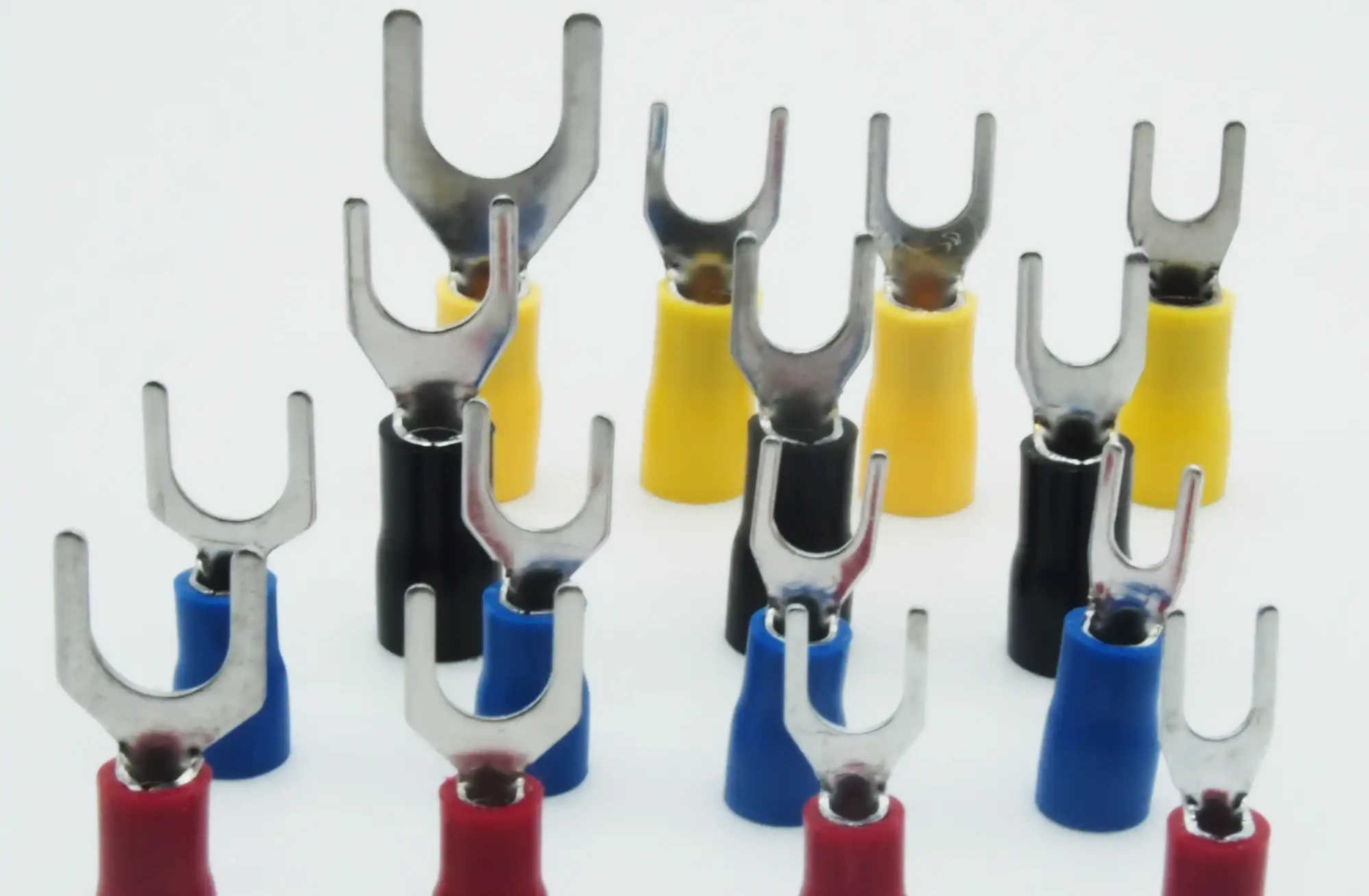

Fork Terminals

Our fork terminals usually consist of a fork-shaped metal clamp and a crimp seat. The wire is inserted into the fork-shaped clamp through the crimp seat, and the clamp’s compression force clamps the wire and crimps the conductor to the device’s conductor, thus forming a reliable electrical connection.

Our fork terminals are widely used in the fields of electricity, electronics and communications. Its advantages include easy installation, reliable connection, stable electrical performance, and low maintenance costs. For example, in power systems, fork-type pre-insulated terminals are commonly used to connect cables, wires or other electrical equipment to provide insulation protection against electrical short circuits.

fork terminals banner

Fork Terminal Connector Products

Related Terminals

Fork Terminal and Connector FAQS

Fork terminals have multiple practical applications, which include:

  1. Automotive wiring: Usually applied to link wires to vehicle batteries, grounding points, and electrical elements, fork terminals’ feature of quick setup allows them to be ideally fit for auto repairs and maintenance.
  2. Industrial equipment: Fork terminals in industrial control panels and machinery offer a tight connection between wires and terminal blocks or relay boards, which ensures reliable electrical performance in high-vibration conditions.
  3. Home appliances: Fork terminals used in household appliances, such as ovens, washing machines, and HVAC systems, connect heating elements, motors, and control switches, where easy access for repair or component replacements are achieved.
  4. Renewable energy systems: Fork terminals employed in solar and wind power systems help link wires to terminal blocks, which ensures efficient power division while simplifying setup processes.

  1. Multiple profits are provided by fork terminals in electrical systems, which include:

    1. Ease of setup: The forked design enables the terminal to be put around a screw or bolt with no complete removal of the fastener, which is time-saving during setup and maintenance.
    2. Fast disconnection: Fork terminals achieve fast disconnection when wires are required to be functioned or replaced, enabling them to be fit for systems where regular maintenance or upgrades are required.
    3. Secure connection: After tightened, the fork terminal offers a stable electrical connection that can withstand vibration and motion, which makes it fit for automotive and industrial settings.
    4. Multifunctionality: Fork terminals are designed with different sizes and materials, allowing them to be adaptable to a wide variety of wiring configurations and environmental factors.

Because of their ability to withstand high-vibration conditions and the demand for tight and easy-to-remove connections, fork terminals play an essential role in automotive settings. Some applications include:

  1. Battery connection: By linking battery cables to the electricity system of vehicles, fork terminals provide a tight connection that can handle the heat and vibration in the engine bay.
  2. Grounding wire: By connecting grounding wires to the vehicle’s chassis, fork terminals guarantee a reliable path to ground that enhances the normal functioning of electrical systems.
  3. Sensor connection: Fork terminals in automotive wiring harnesses link sensors and other elements that need regular access for maintenance or replacement.

Fork terminals in industrial settings have widespread applications for linking wires to terminal blocks, motors, and relays. The profits of applying fork terminals in industrial settings include:

  1. Vibration resistance: Fork terminals offer a tight connection that can handle the continuous vibration and motion common in industrial settings, where electrical stability can be guaranteed over time.
  2. Easy maintenance: The fork design enables quick disconnection and reconnection, which reduces downtime during maintenance or when components are replaced in control panels or relay boards.
  3. Compatibility with terminal blocks: Fork terminals used with industrial terminal blocks allow for quick and reliable wiring connections that can be easily modified or expanded if necessary.

Fork terminals are designed of various kinds, with each suitable for specific uses:

  1. Insulated fork terminals: This type of terminal is coated with a layer of insulation that prevents accidental contact with other conductive surfaces, which makes them ideal for application in conditions where electrical shorts are a worry, such as auto wiring and home appliances.
  2. Non insulated fork terminals: Non insulated terminals have common applications where the connection is protected against external factors, such as inside an electrical enclosure. They are usually applied in industrial settings where space is tight and insulation is unneeded.
  3. Heat-shrink fork terminals: These terminals are designed with a heat-shrinkable sleeve that, when getting heated, shapes a watertight and airtight seal along the connection. They have common use in marine, outdoor, and high-moisture conditions that require extra protection.
  4. High-temperature fork terminals: Built from materials that can endure high heat, these terminals are employed in applications like auto engines and industrial furnaces where high temperatures may occur.

Proper crimping plays a crucial role in ensuring a reliable connection with fork terminals. Some of the best examples are shown below:

  1. Right tool: A crimping tool specifically designed for fork terminals should always be applied to guarantee a tight and consistent crimp that holds the wire firmly in place.
  2. Properly strip the wire: Suited insulation should be stripped from the wire, making the conductor exposed with no excessive bare wire. The conductor should fit snugly into the barrel of terminal for a tight crimp.
  3. Secure crimp: The wire should be gently tugged to guarantee it has firm attachment to the terminal after crimping. A loose crimp could result in poor electrical contact and finally faults of the connection.
  4. Heat-shrink if applicable: Heat should be applied after crimping if heat-shrink fork terminals is used, so as to shrink the insulation along the connection, which offers extra protection against moisture and environmental conditions.

Fork terminals are able to withstand high-current applications, given they are properly matched for the special electrical load. Some universal high-current uses include:

  1. Battery connection: Fork terminals in both auto and industrial systems, link battery cables, which require terminals that can withstand large amounts of current with no overheating or cause of electrical failures.
  2. Power division in control panels: Fork terminals in industrial control panels divide electricity to relays, motors, and other high-current elements, which ensures a steady and tight connection that can withstand the electrical load.
  3. Motor connection: Fork terminals in motors and other high-power devices, link wires to terminal blocks, offering a tight connection that can deal with more current and heat created by the machinery.

Fork terminals are built from a wide range of materials to fit various environmental factors and application demands. Universal materials include:

  1. Copper: Copper is the most universally applied material for fork terminals because of its outstanding electrical conductivity and durability. Copper terminals are perfectly fit for general-purpose automotive, industrial, and home applications.
  2. Tinned copper: Tinned copper fork terminals provide the same conductivity as copper but with extra corrosion resistance, which allows them to be suitably used for marine, outdoor, and high-humidity conditions.
  3. Brass: Brass fork terminals are applied in settings where mechanical strength is a key, such as in industrial machinery and control systems that are subject to high levels of vibration.
  4. Stainless steel: Stainless steel fork terminals have applications in highly corrosive conditions, such as marine or chemical processing settings, where the terminal must have resistance to rust and degradation over time.

The safety of electrical systems is enhanced by fork terminals in the following ways:

  1. Tight connection: The fork design guarantees that the terminal stays tightly fastened to the screw or bolt, which decreases the risk of loose connections that could lead to issues like electrical shorts or fires.
  2. Insulated choices for extra safety: Insulated fork terminals protect against accidental contact with other conductive surfaces, which protects users against electrical shocks and prevents shorts in conditions where insulation is key.
  3. Easy recognition & troubleshooting: Fork terminals are designed in a wide variety of colors, which makes it easier to recognize wires and connections during setups, repairs, or troubleshooting, enhancing the whole safety of the electrical system.

Fork terminals are able to be recycled if they stay in good condition, but some factors should be checked before reusing them:

  1. Wear and damage check: The terminal should be checked for any signs of corrosion, wear, or damage. If any degradation of the terminal appears, it is advisable to replace it to guarantee a reliable connection.
  2. Crimp integrity: If the fork terminal is crimped and the connection is still firm, it may be recycled. However, if the crimping has loosened when removing, the terminal should be reused without leading to a weak connection.
  3. Best practices for critical system: Fork terminals in critical settings like automotive or industrial machinery may be safer to replace fork terminals to guarantee optimal performance and safety.

Because of their durability and ease of connection, fork terminals have widespread applications in renewable energy systems, such as solar and wind power setups. Applications cover:

  1. Connection of solar panel: Fork terminals are applied to link wires from solar panels to power inverters and distribution boards, which offers a tight connection that can withstand the electricity created by the panels.
  2. Battery storage system: Fork terminals in off-grid solar setups link the batteries to the system, which ensures efficient energy storage and power transmission while the disconnection of components can be easily achieved during repairs.
  3. Wind turbine: In wind turbines, fork terminals link power distribution systems, inverters, and battery storage units, which provide vibration-proof connections that can withstand extreme outdoor environments.

Fork terminals in HVAC (heating, ventilation, and air conditioning) systems generate reliable connections for critical elements. Some of the most universal uses cover:

  1. Thermostat connection: Fork terminals help link thermostat wiring to control boards, which enables precise temperature control and easy maintenance access.
  2. Fan & motor connection: Fork terminals link fans and motors to the electrical system in HVAC units, which offers a tight connection that can endure the functional vibrations of the system.
  3. Heating components: In electric furnaces and heating units, fork terminals help link heating elements to electricity sources where safe and reliable functioning can be achieved even under high temperatures.

Fork terminals have universal applications in industrial control panels because of their simplicity and tight connection. Uses cover:

  1. Relay connection: Fork terminals help link wires to relays and contactors, offering a tight connection that can be rapidly disconnected for maintenance or troubleshooting.
  2. Terminal blocks: Fork terminals in control panels enable easy connection and disconnection of wires from terminal blocks, which is helpful for simplifying system wiring and revisions.
  3. Grounding connection: Fork terminals are usually applied for linking grounding wires in control panels, which guarantees that the system has a reliable path to ground for safety and electrical functioning.
