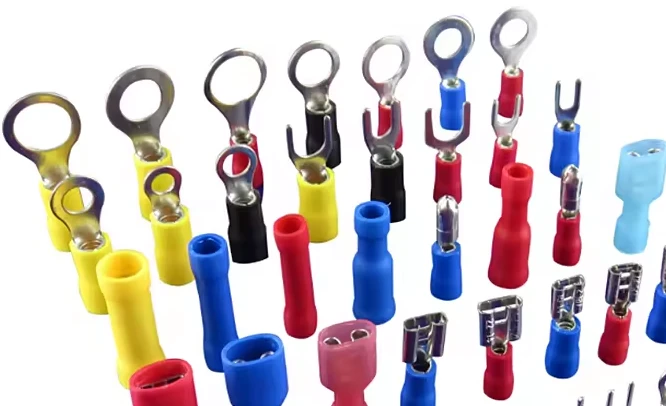

Pre Insulated Terminals

Functioning as electrical connectors, pre insulated terminals are designed with a built-in layer of insulation that is generally made from materials like vinyl, nylon, pr heat-shrink tubing. The metal conductor of the terminals is surrounded by the insulation, which gives protection of the connection against electrical shorts, moisture, and environmental conditions.
Pre insulated terminals are applied for ensuring safe and steady connections in electrical systems and simplifying the setup process through the elimination of the demand for extra insulation.

Pre Insulated Terminals Connector Products

Related Terminals

Pre Insulated Terminal and Connector FAQS

Pre-insulated terminals have applications in different practical uses, which includes:

  1. Auto Wiring: Pre insulated terminals have frequent applications for the connection of battery cables, sensors, lighting systems, and other elements in vehicles. The insulation gives protection of the connection against engine heat, vibration, and electrical failures, which ensures long-term reliability in the car electrical system.
  2. Household Appliances: These terminals are applied in devices like dishwashers, refrigerators, and washing machines to connect electrical elements like motors, compressors, and heaters. The pre-insulation protects the connection against moisture and wear, where safe and efficient operations can be ensured.
  3. Marine Settings: In vehicles like boats, pre insulated connectors have applications for wiring navigation systems, bilge pumps, and lighting, where moisture and saltwater exposure are worries. The insulation protects from corrosion and makes sure a secure and water-resistant connection is achieved.
  4. Control Panel: In industrial control panels, pre insulated terminals are applied to arrange and prevent wire connections from environmental exposure, dust, and chemicals, which ensures unified functioning in harsh conditions.
  1. Pre-Insulated Ring Terminal: These terminals are applied to securely fasten wires to studs or bolts. The insulation prevents accidental contact with other conductive components, which reduces the risk of short circuits. They are universally applied in auto electrical systems for grounding and battery connections.

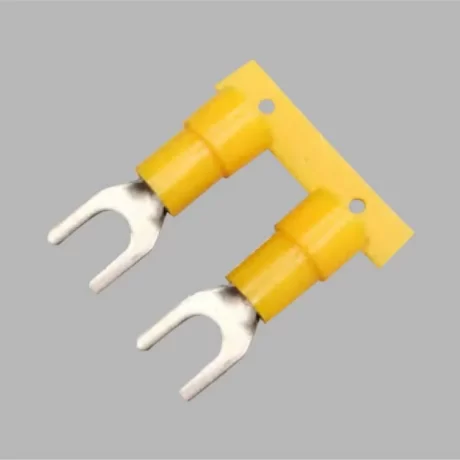

  2. Pre-Insulated Spade Terminal: Spade terminals (also named fork terminals) enables easy connection and disconnection in control panels and auto wiring systems. The pre-applied insulation gives protection from electrical shocks and offers durability, particularly in settings where frequent disconnections may be needed.
  3. Pre-Insulated Butt Connector: Butt connectors are applied to splice two wires together end-to-end. Pre-insulated ones ensure the connection is protected against moisture and vibration, which make them fit for auto repairs, appliance wiring, and marine setups.
  4. Pre-Insulated Quick Disconnects: Quick disconnect terminals have frequent applications in environments where frequent maintenance or disassembly is needed, such as appliance repairs or auto systems. The insulation offers protection when in use and also simplifies the process of connecting and disconnecting elements.

Pre insulated terminals offer elevated safety in electrical systems by the following aspects:

  1. Shock Prevention: The metal conductor is prevented by the pre-applied insulation from being exposed, which reduces the risk of electrical shocks when installing or maintaining.
  2. Protection from Short Circuits: The insulation functions as a barrier, which protects the terminal against coming into contact with other conductive surfaces, which could lead to issues like short circuits.
  3. Resistance to Moisture and Corrosion: In marine and outdoor settings, pre insulated terminals give protection of the connection against moisture, saltwater, and corrosion, which ensures the integrity of the electrical system over time.
  4. Heat Resistance: Terminals with nylon or heat-shrink insulation provide protection against high heat, which plays a crucial role in settings like auto engine compartments or industrial machinery.

In industrial wiring settings, pre insulated connectors provide multiple practical benefits:

  1. Fast Setup: Pre-insulated connectors can be easily installed, which reduces labor time in large-scale industrial projects that require a lot of connections. This enables efficient installations of control panels, machinery, and production devices
  2. Dust and Chemical Protection: The insulation on pre insulated connectors are helpful for protecting the connection against exposure to dust, chemicals, and other environmental risks universal in industrial conditions, which ensures reliable functioning.
  3. Handy Maintenance: For industrial systems that require periodical maintenance or upgrades, pre-insulated quick disconnects enable technicians to qucikly replace or disconnect elements with no compromise of safety.
  4. Heat & Vibration Resistance: Pre insulated connectors are built to endure the harsh environments of industrial applications, which includes high heat and mechanical vibration, making sure long-term durability and decreased downtime are achieved.

In solar power systems, pre-insulated terminals are essential for connecting panels, inverters, and battery systems. Their benefits include:

  1. Resistance UV & Extreme Weather: Solar systems have exposure to sunlight, rain, and temperature variations. Pre insulated terminals offer protection from UV rays and moisture, which ensures secure links in outdoor conditions.
  2. Durability in Extreme Conditions: Pre insulated connectors are helpful for preventing corrosion and degradation led by exposure to the components, which improves the lifespan and reliability of solar power systems.
  3. Easy Setup: The pre-applied insulation achieves the simplification of the wiring process, which allows for faster installation and maintenance of solar arrays, especially in large-scale setups.

Pre insulated terminals are perfectly fit for marine wiring due to the reasons below:

  1. Water-Resistant: The insulation is helpful for sealing the connection from water and salt exposure, which prevents corrosion and ensures the lifespan of the connection.
  2. Corrosion Resistance: Pre insulated terminals, those with heat-shrink insulation in particular, offer an extra layer of protection from saltwater corrosion, which is commonly found in marine conditions.
  3. Ease of Setup: Pre insulated connectors decrease setup time by eliminating the demand to use external insulation or weather resistance, which makes them handy for marine wiring projects where speed and reliability are keys.
  4. Vibration Resistance: Vehicles like boats usually encounter constant motion and vibration, and pre insulated terminals ensure the secure connection of the wiring even in these environments.
